DIY Home LED Wall
Cinema‑level LED wall at home
- Tool‑less assembly
- Pre‑programmed controller
- No size limit - larger than 170″
Big screen, you can be in a movie theater experience at home

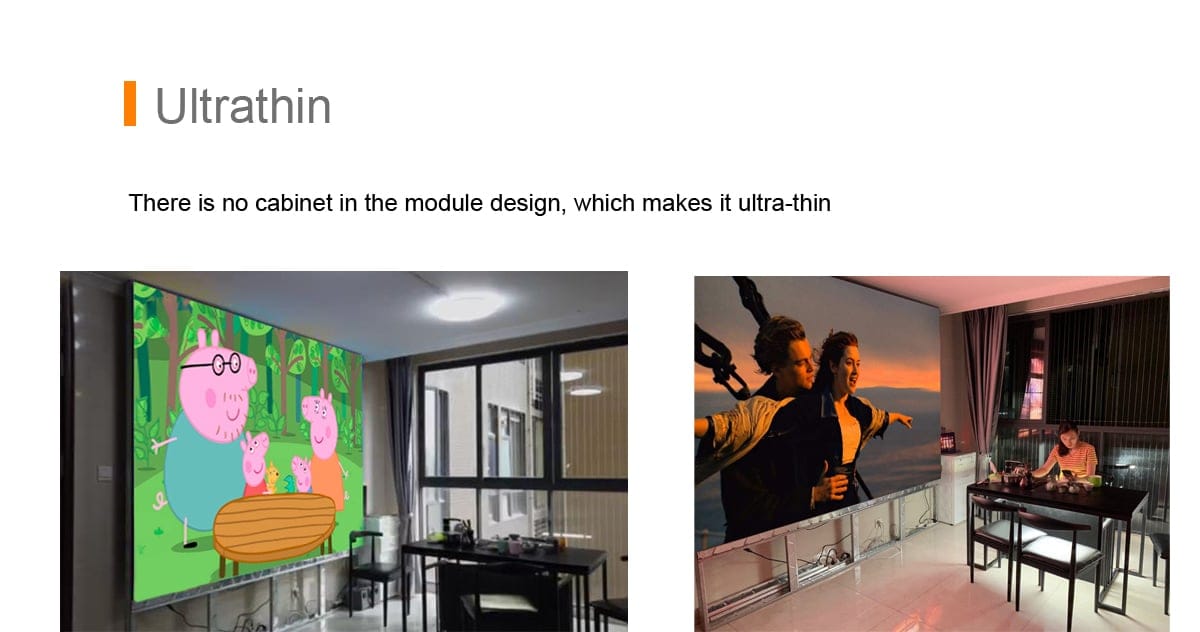

Simple and convenient without bulky box structure
Build your LEDWALL at home with only common building materials
Front maintenance Module-magnetic
Each unit consists of 8 pieces of 320*160 LED modules. Each unit size is 640*640mm.
8 powerful magnets embedded in each LED module. High-strength magnets ensure strong magnetic force and are tightly adsorbed on the steel structure
Essential Accessories
High-quality controllers and receiving cards engineered for seamless LED display performance

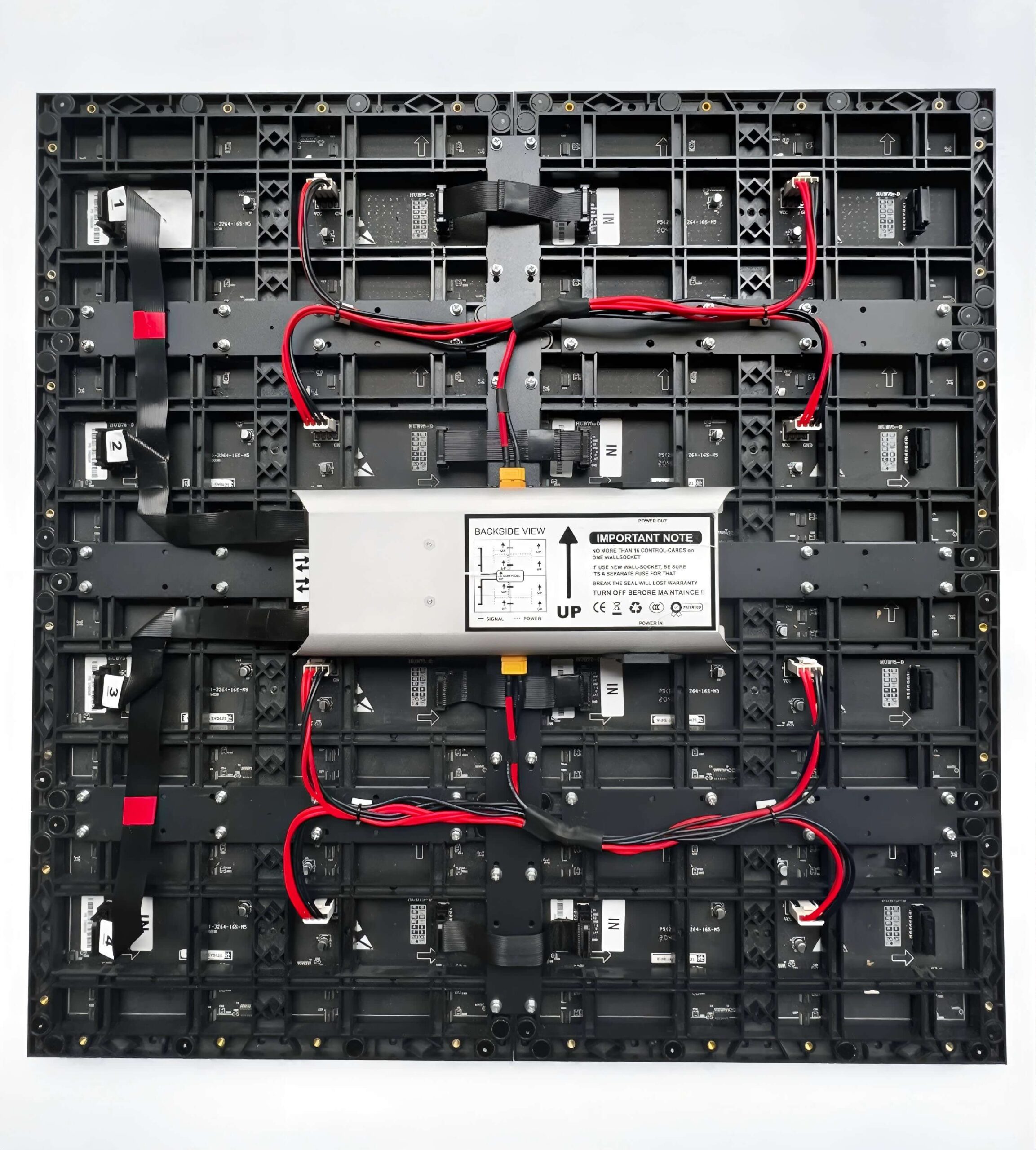

Receiving Card
- 8 signal cables connecting to LED module back
- 8 power cables (5V) for module connection
- Reliable signal transmission

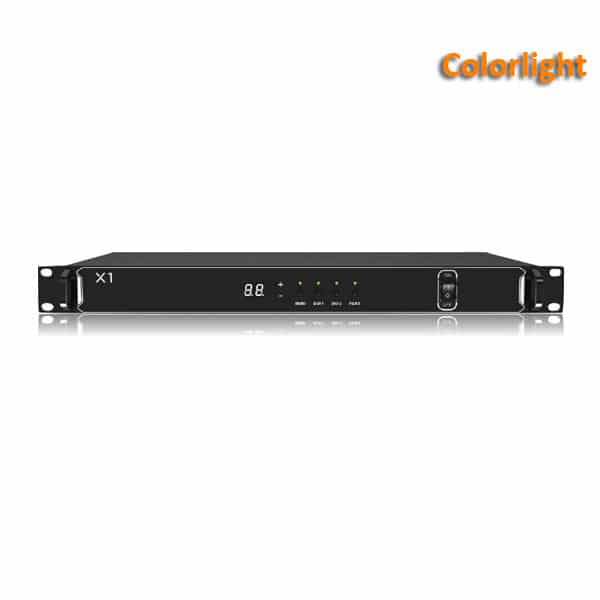

Video Controller
- Pre-configured for instant deployment
- Ready-to-use out of the box
- Seamless content playback

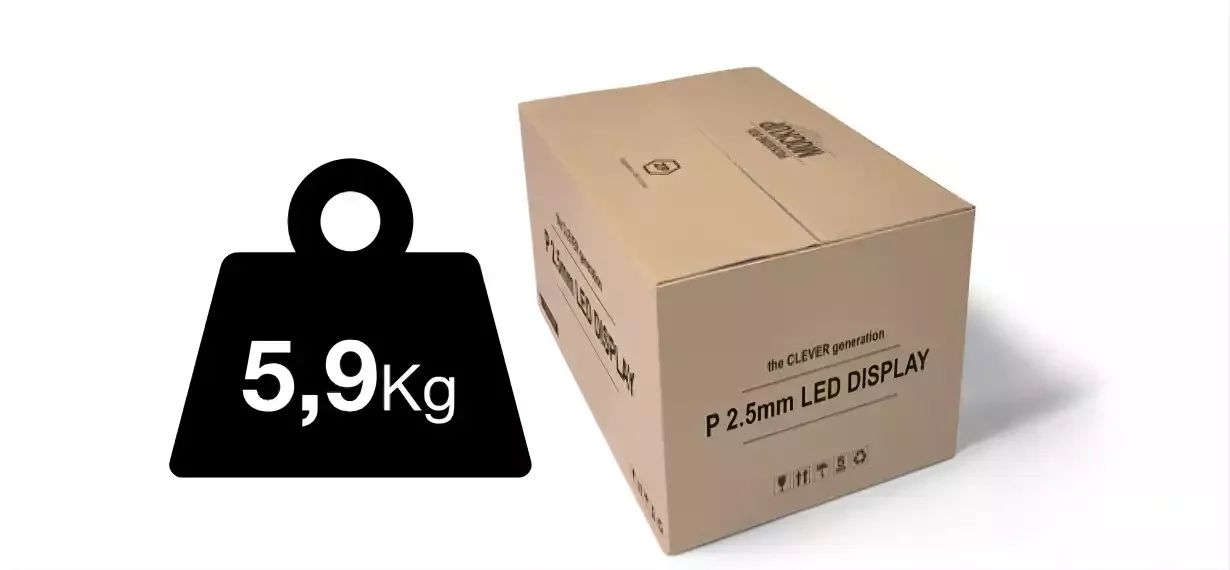

5.9kg per Unit, Less Shipping Cost
Each unit weighs only 5.9kg, significantly reducing shipping costs and making it easier to transport.
How to DIY
Install your LED display yourself with our simple step-by-step guidance. No professional tools required.
Watch Step-by-Step Video
Clear video instructions guide you through every stage of the installation process.
Only a Screwdriver Required
Prepare a simple screwdriver and follow along to complete the full assembly.
Plug, Power & Enjoy
Connect power and signal cables. Your DIY LED display is ready to shine.
Standard & Wide Formats

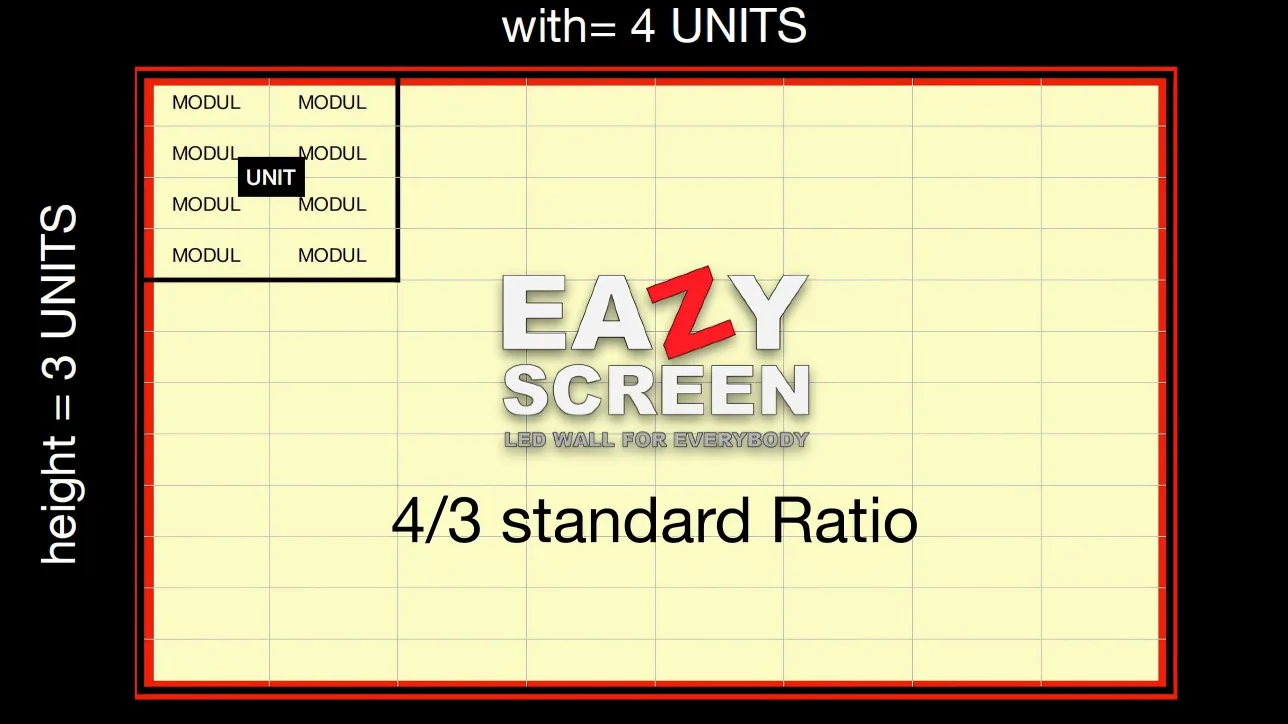

Standard Screen Size
| Pixel Pitch | P 2.5 | P 2 | P 1.8 |
|---|---|---|---|
| Pixel Resolution | 1024 × 768 | 1280 × 960 | 1408 × 1056 |

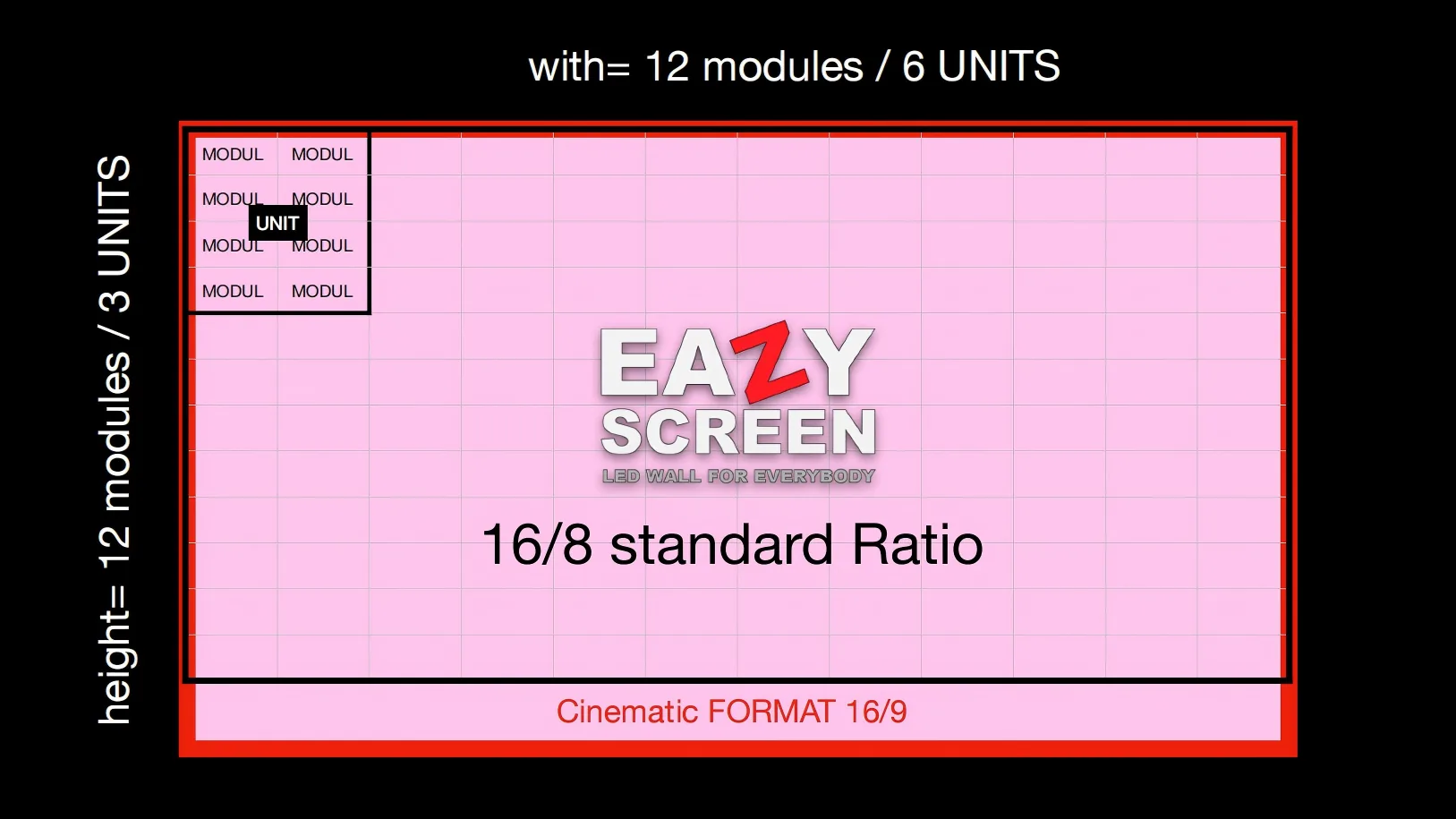

Wide Screen Size
| Pixel Pitch | 16:8 Standard | 16:9 Special |
|---|---|---|
| P 2.5 | 1536 × 768 | 1536 × 896 |
| P 2 | 1920 × 960 | 1920 × 1120 (FULL HD) |
| P 1.8 | 2112 × 1056 | 2112 × 1232 (FULL HD+) |
Cinematic Size Variations

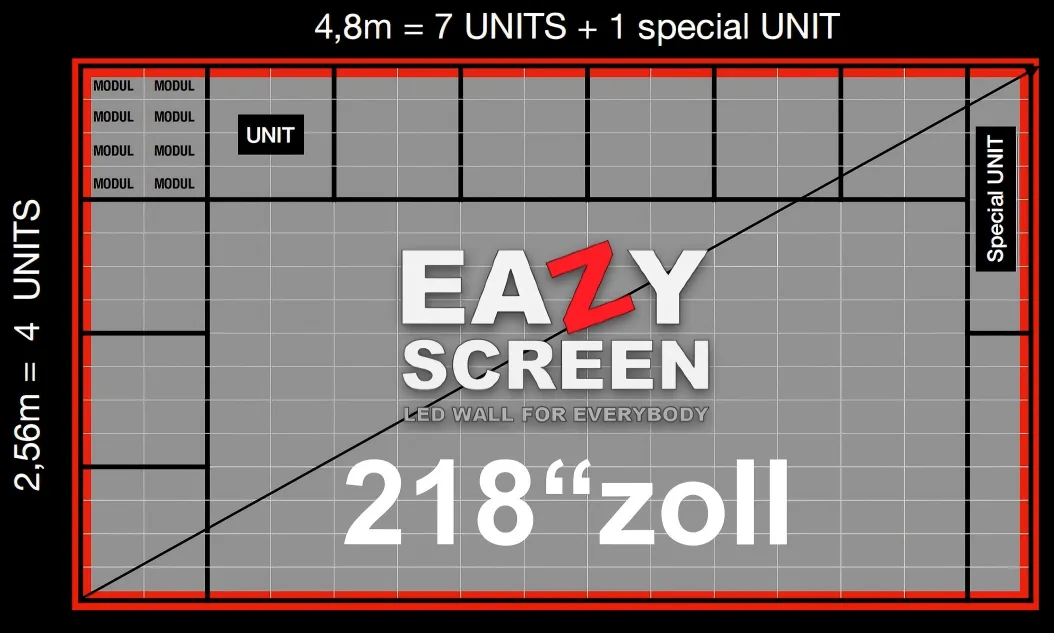

480cm × 256cm
P 2.5240 modules
28 + 2 special
1920 × 1024
pixel density
218″

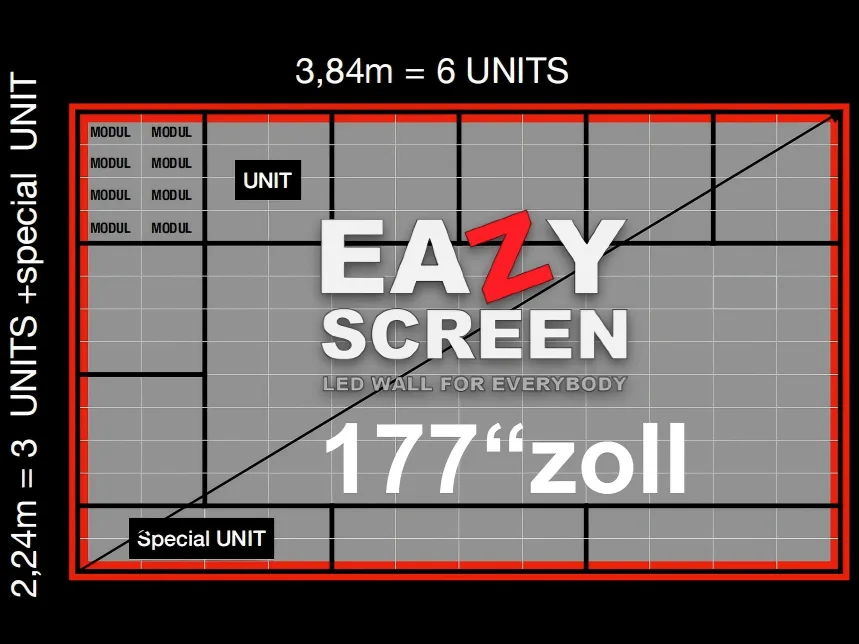

384cm x 224cm
P 2168 modules
18 + 3 special
1920 × 1120
pixel density
177″
352cm x 192cm
P 1.8132 modules
15 + 2 special
1936 × 1056
pixel density
166″

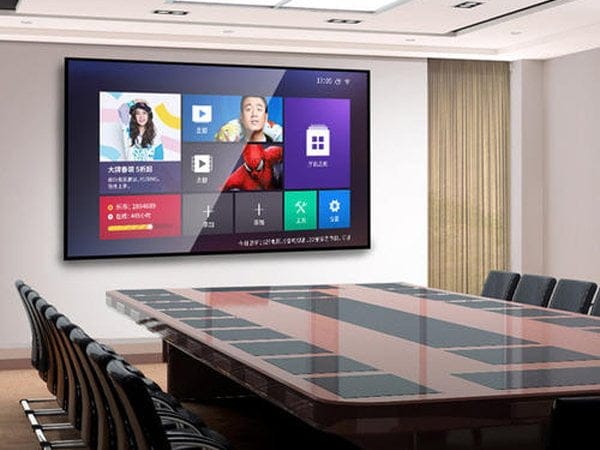

Application
We Have a Vision
Make installation simple
Many people have a strong interest after seeing our LED Wall, but the complicated installation method discourages them. So, we creatively made a simple installation method, ready for DIY Home LED wall to enter thousands of households.
Reduce the weight
Most of the led walls we have seen are bulky box structures, which make installation and transportation difficult, we removed the main frame, which will become lighter and easier to transport.
Bring the cost down
The installation is simple and the transportation is simple, which has brought us a fundamental change. Each unit is less than 6kg, which will reduce our huge transportation costs and allow you to use cinema-like LED screens at home.
DIY home LED wall kits are quoted by screen area. The final price depends on pixel pitch, brightness, kit configuration and order quantity. Send your wall size and we will return an itemised quotation.
Product Features & Applications
DIY Home LED Wall - Built for Easy Setup & Stunning Visuals
Our DIY Home LED Wall is designed for homeowners and enthusiasts who want cinema-grade picture quality without the complexity. Modular, lightweight, and plug-and-play -- transform any room into an immersive entertainment space.
Tool-Free Assembly
Magnetic snap-together panels, no technician needed
Built-in WiFi & Cast
Wireless screen mirroring from phone & laptop
Low Power Consumption
≤120W per m² -- energy efficient all day
Modular Expansion
Start with 55" and grow up to 165"+ anytime
