Transparent LED Display for Retail Windows and Glass Facades
Play your product promotion video without affecting customers to see the products inside the store. With the transparent LED display, you can stop the flow of people, attract attention, and get more customers.
Engineered for Impact
High Transparency
45%~90% transparency with better lighting effect. High light transmittance, does not affect lighting and sight.
Super Light-weight
About 10 kg for 1sqm. Aluminum frame light weight -- reduced by more than 50%, only 5.2kg/cabinet.
HD Visual Experience
High contrast, 160° ultra-wide viewing angle, refresh rate up to 3840Hz, no flicker, P3.91 ultra-fine pitch.

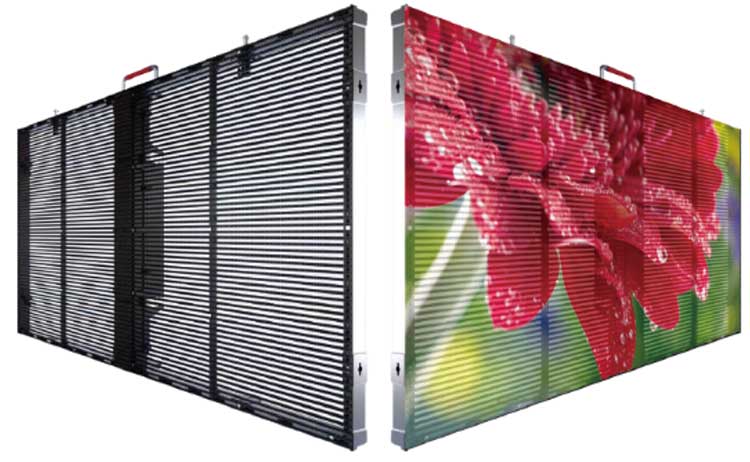

High Transparency
- Simplified structural design, with a transparency of 70%-85%
- High light transmittance, does not affect lighting and sight
- High ventilation, natural convection heat dissipation, no fan required
- Does not change the appearance of commercial buildings. Installed indoors, does not affect lighting
- The transparent LED screen works like shutters -- light passes through a certain angle imaging to our eyes

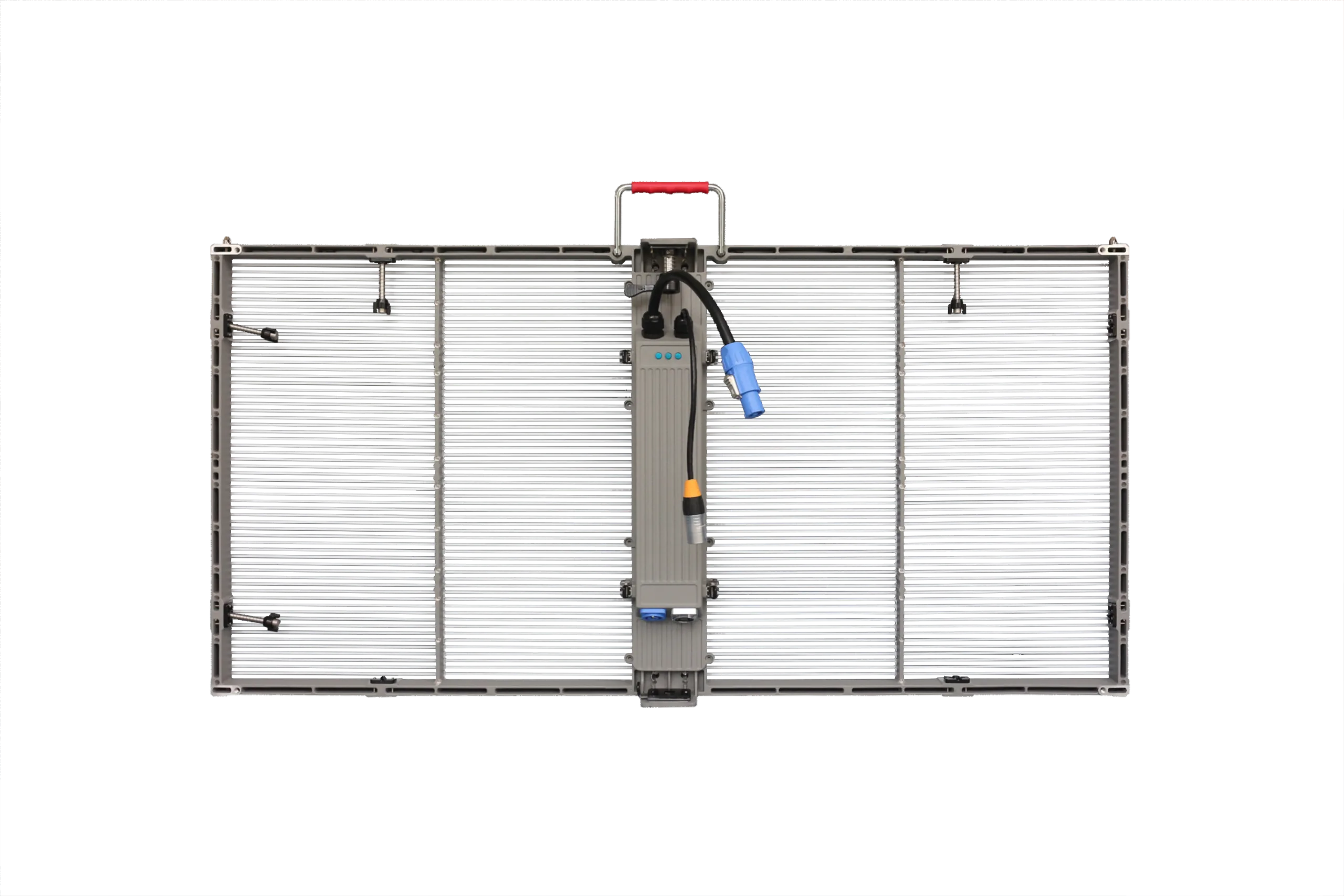

Super Light-weight
Aluminum frame light weight. Compared with the other LED Display, the weight is reduced by more than 50%, and the weight is 5.2kg/cabinet.

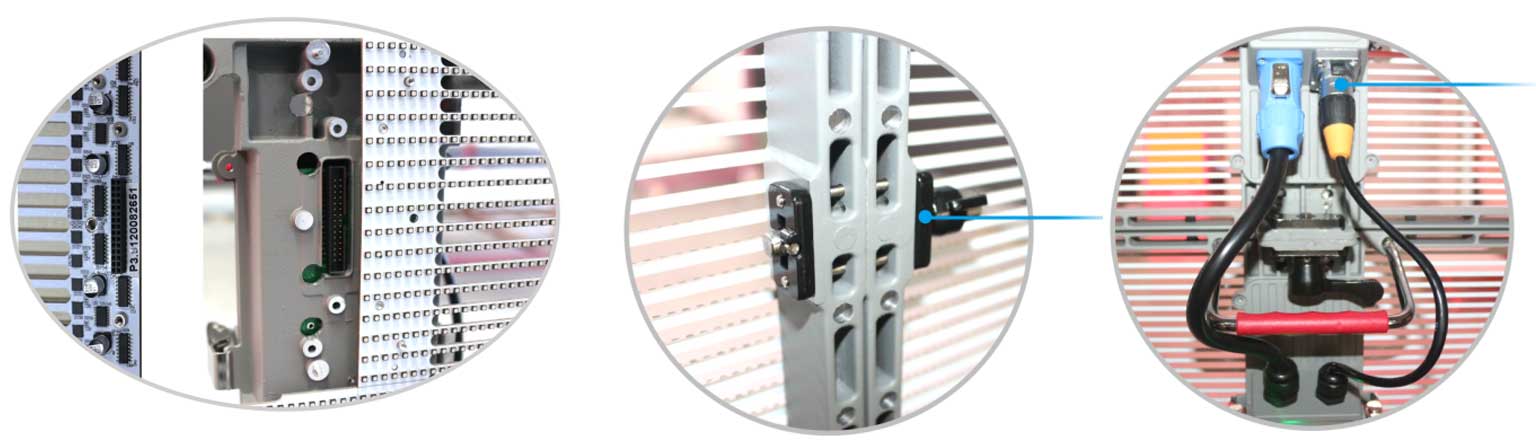

Hot-plug Design
Between PCB board and box. 5V safety voltage, simple maintenance, safe and durable.
Hidden Lock Connection
Convenient and beautiful, one person can quickly assemble.
Power & Signal Plug Connection
Built-in power supply and receiving card for seamless integration.
HD Visual Experience
- High contrast, the ultra-wide viewing angle of 160°, bright and colorful, attracting attention.
- Refresh rate can reach 3840Hz, no flicker, good display effect
- With a unique circuit design, the power consumption is very low.
- P3.91 ultra-fine pitch brings high-definition visual enjoyment and supports user customization.
Specification of Transparent LED Screen
| Application | Outdoor | Indoor | Indoor |
|---|---|---|---|
| Pixels Pitch | 3.91(w)-7.81(h) | 3.91(w)-7.81(h) | 3.91(w)-7.81(h) |
| LED lamp | SMD1921 | SMD1921 | SMD2020 |
| Brightness | 5000nit | 5000nit | 1200nit |
| Resolution | 256*64 | 256*64 | 256*64 |
| Driver IC | ICN2153 | ICN2153 | ICN2153 |
| Scan mode | 1/8 | 1/8 | 1/16 |
| Transparency | 50% | 50% | 50% |
| Refresh rate | 3840 | 3840 | 3840 |
| View angle | 110° | 160° | 160° |
| Waterproof | IP65(F)/IP54(B) | IP43 | IP43 |
| View distance | ≥4meter | ≥4meter | ≥4meter |
| Power input | 110v~220v | 110v~220v | 110v~220v |
| Size | 1000mm~500mm*80mm | 1000mm~500mm*80mm | 1000mm~500mm*80mm |
| Weight | 6.5 kg | 5.2kg | 5.2kg |
Applications
Make your Transparent LED display come alive and attract the attention it deserves.
Highly customizable, this indoor transparent LED screen can be designed to create attention-getting displays. Ideal for permanent and semi-permanent displays, including shopping mall, concert displays, entertainment venues, national landmarks, and trade shows.
Clear Series LED Screen can be customized to fit your indoor architecture, no matter the size, from small displays to giant transparent LED video screens and even overhead canopies.
Transparent LED display is quoted by screen area. The final price depends on pixel pitch, transparency level, brightness and order quantity. Send your glass area and viewing distance and we will return an itemised quotation.
