Matrix Series Indoor Fixed LED Display
A slim front-service LED display system built for ultra high definition, wireless module connection, fast setup, flexible assembly, and creative 90 degree installation.
High definition display, built on installation efficiency.
The page positions Matrix Series around ultra high definition, ultra-slim construction, flexible assembly, front service, fast setup, wireless connection, high grayscale, and high refresh rate.
Ultra high definition
Pixel pitch options from P1.25 to P3.91 support close-viewing indoor display scenarios.
High grayscale
14/16 bit grayscale with high refresh helps produce realistic, delicate image performance.
Front service
Front installation and maintenance support tight fixed displays with 0 space constraints.
Creative installation
Modules can rotate 90 degrees, supporting right-angle and column display designs.

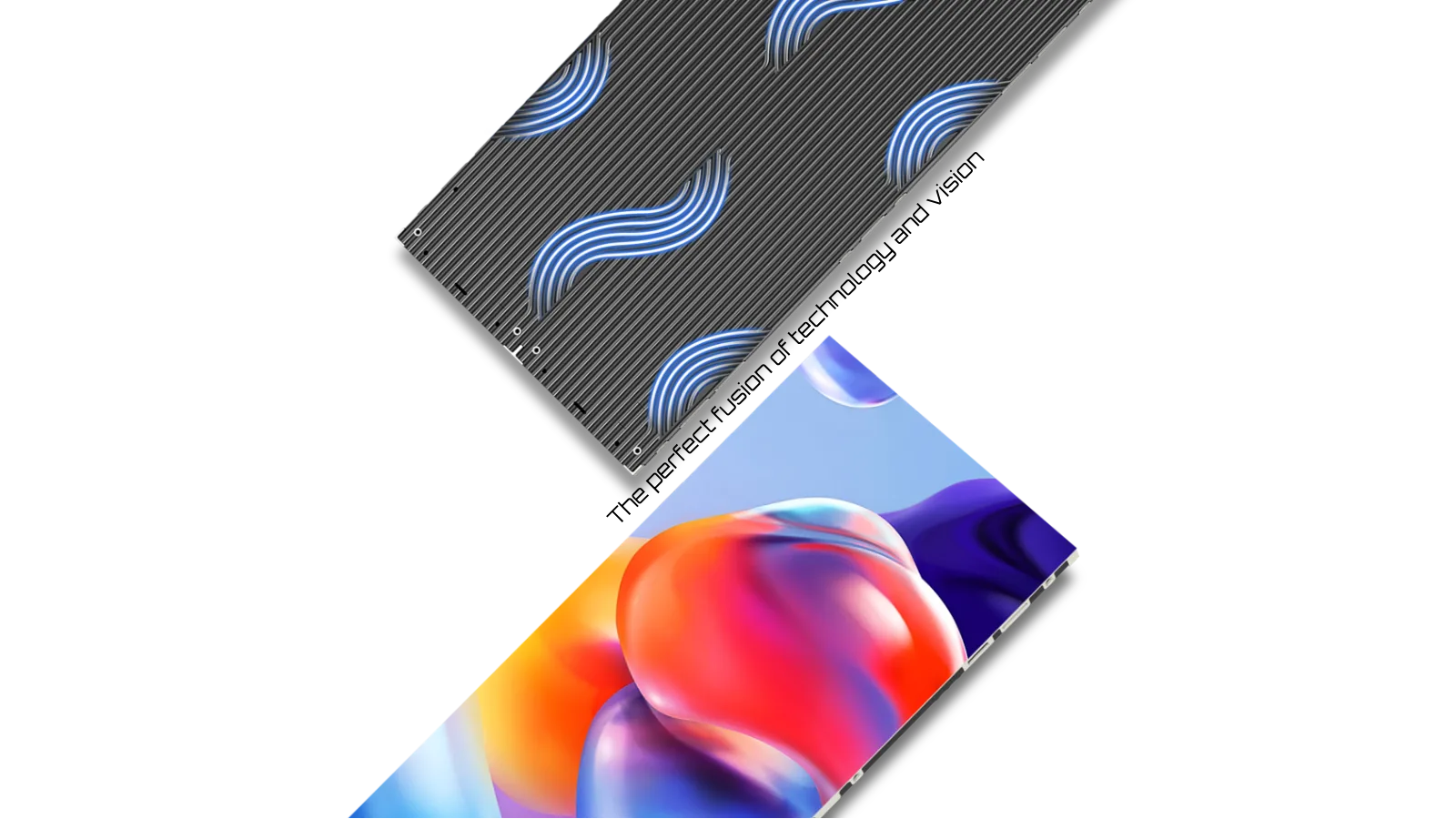

Semicircle exterior design with continuous rhythm.
The exterior uses a semicircle as the main design element. When multiple cabinets are pieced together, the repeated pattern forms flowing S-shaped details, giving the product a stable, smooth, and futuristic look.

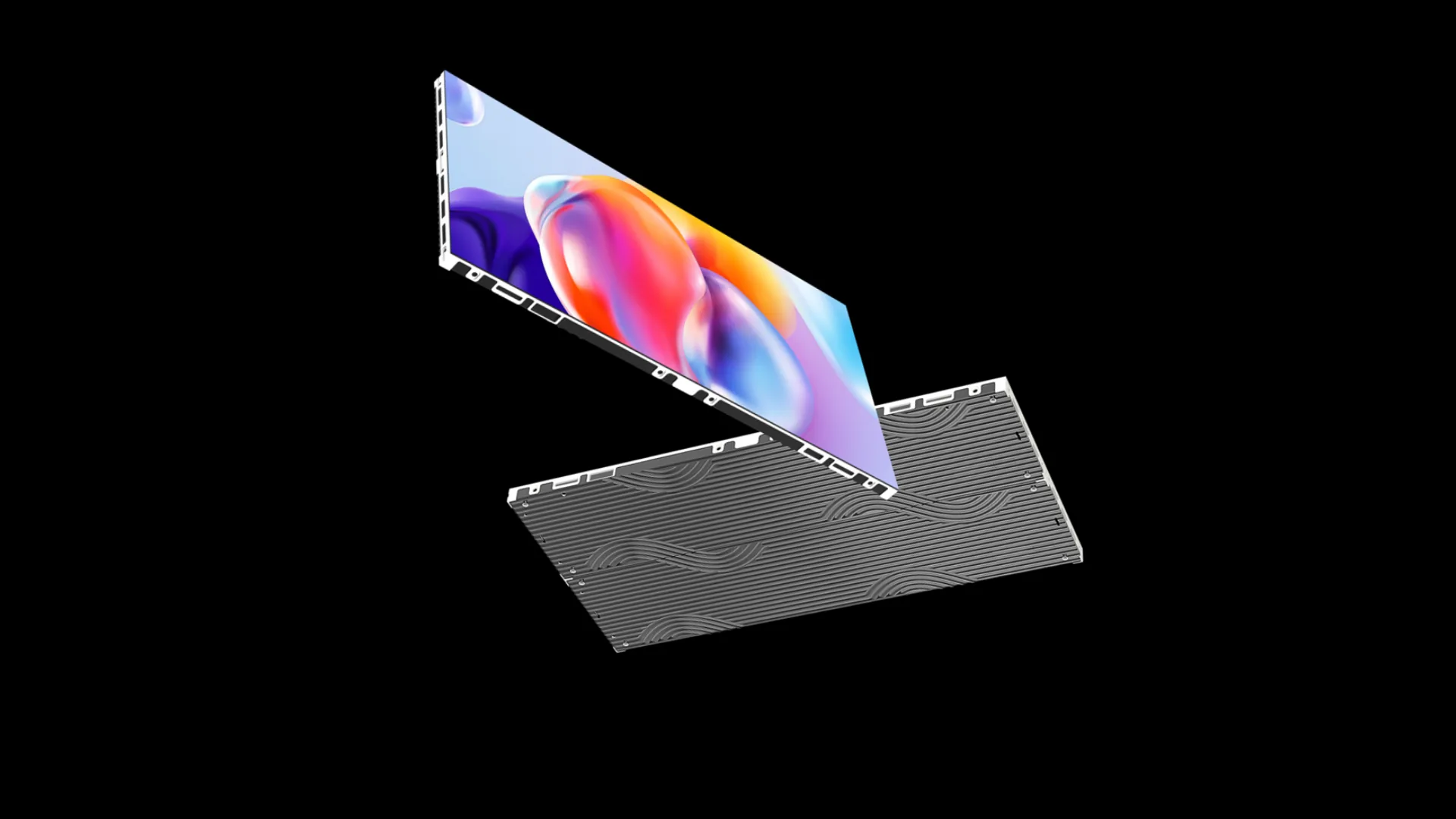

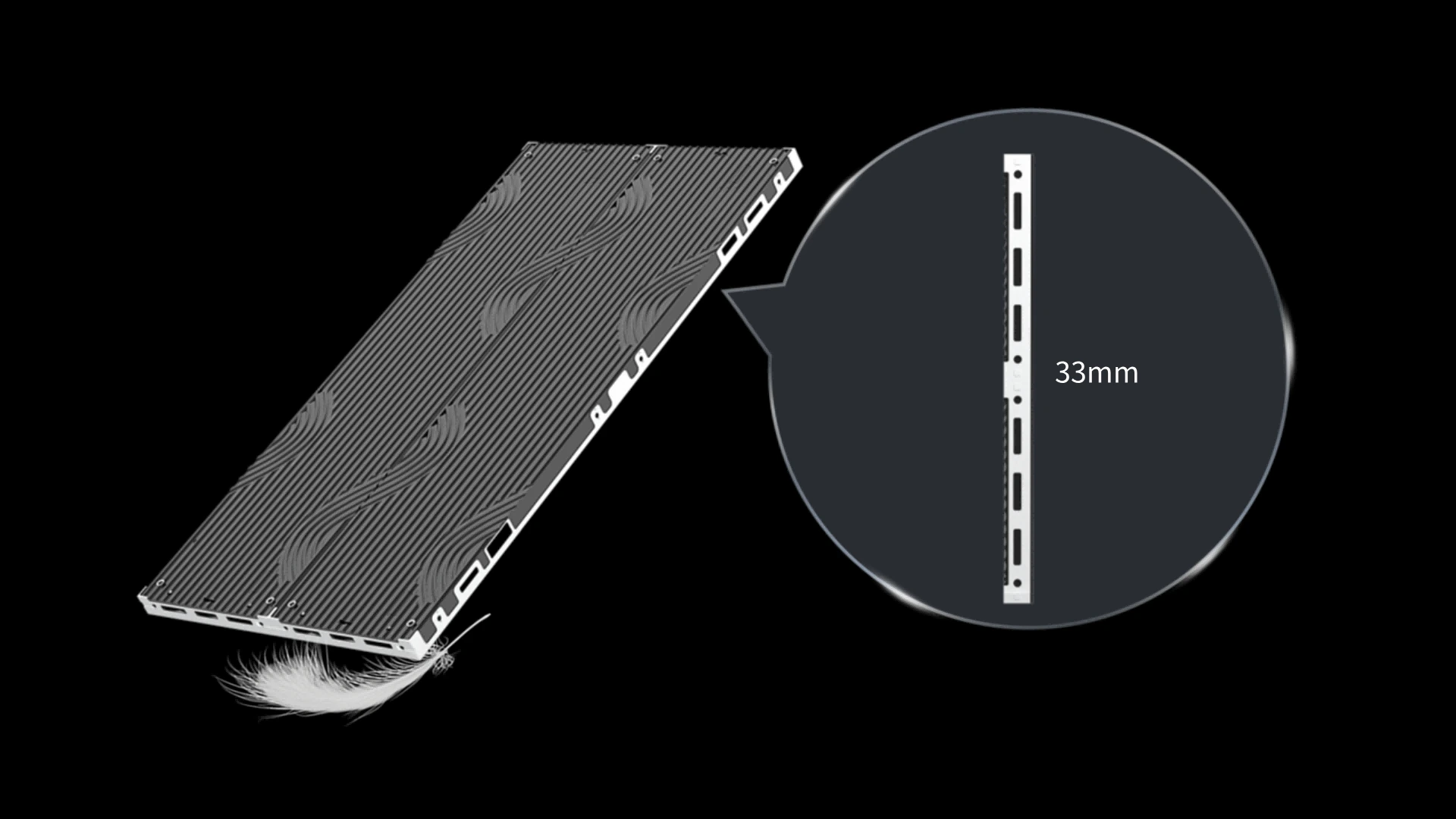

Die-cast aluminum cabinet body.
Total thickness is only 33mm.
Smooth product language for fixed installs.

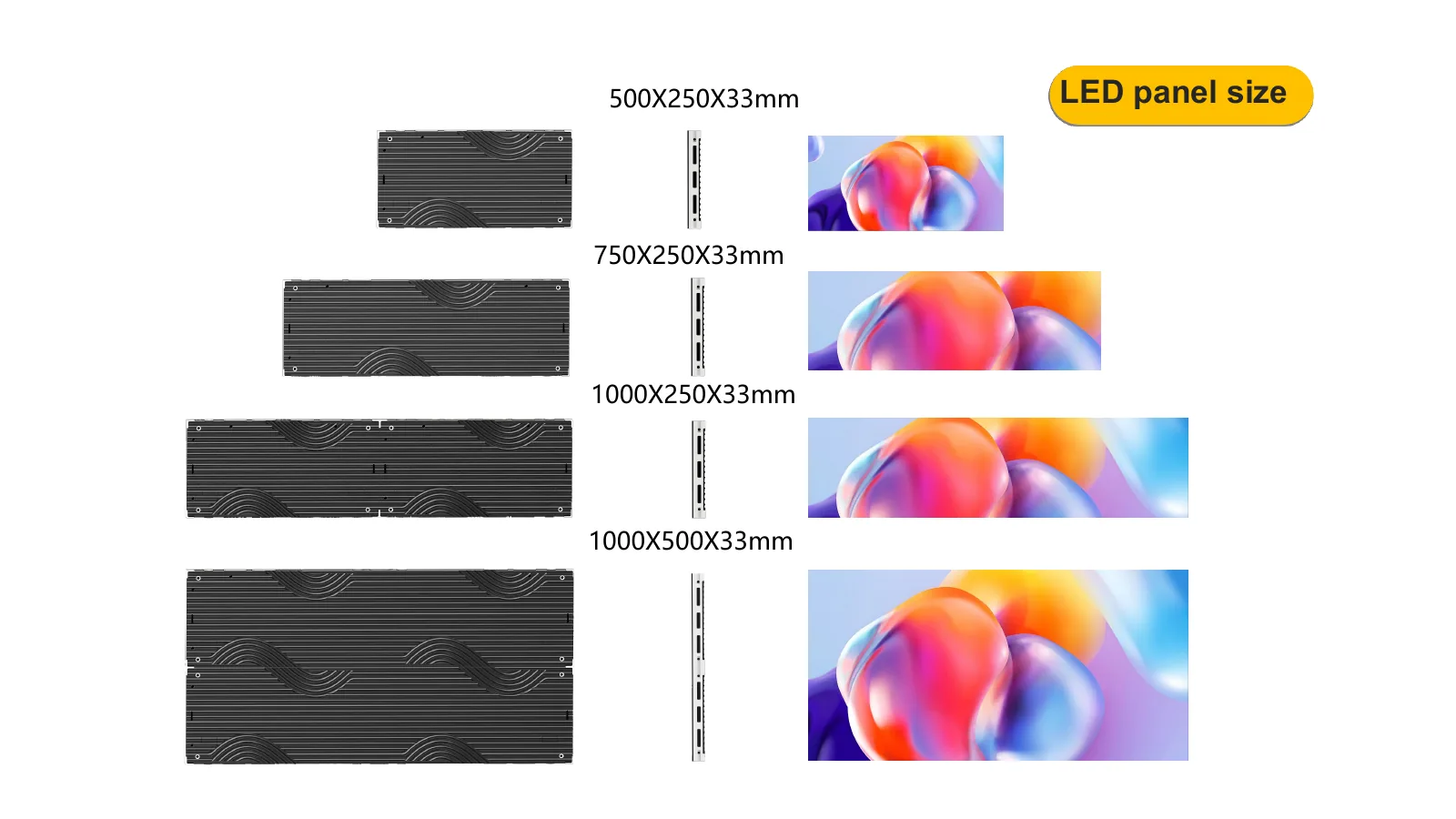

Four panel sizes, one 33mm ultra-slim platform.
Matrix Series supports 500x250x33mm, 750x250x33mm, 1000x250x33mm, and 1000x500x33mm panels. The four cabinet types can be used together across different widths, heights, and installation scenes.
Die-cast aluminum body with precise, lightweight cabinet options.
The catalog specifies an integrated die-cast aluminum cabinet body with high precision and total thickness of only 33mm. The four listed cabinet weights are 10.5kg, 5.6kg, 4.0kg, and 3.0kg.
1000mmx500mm
1000mmx250mm
750mmx250mm
500mmx250mm

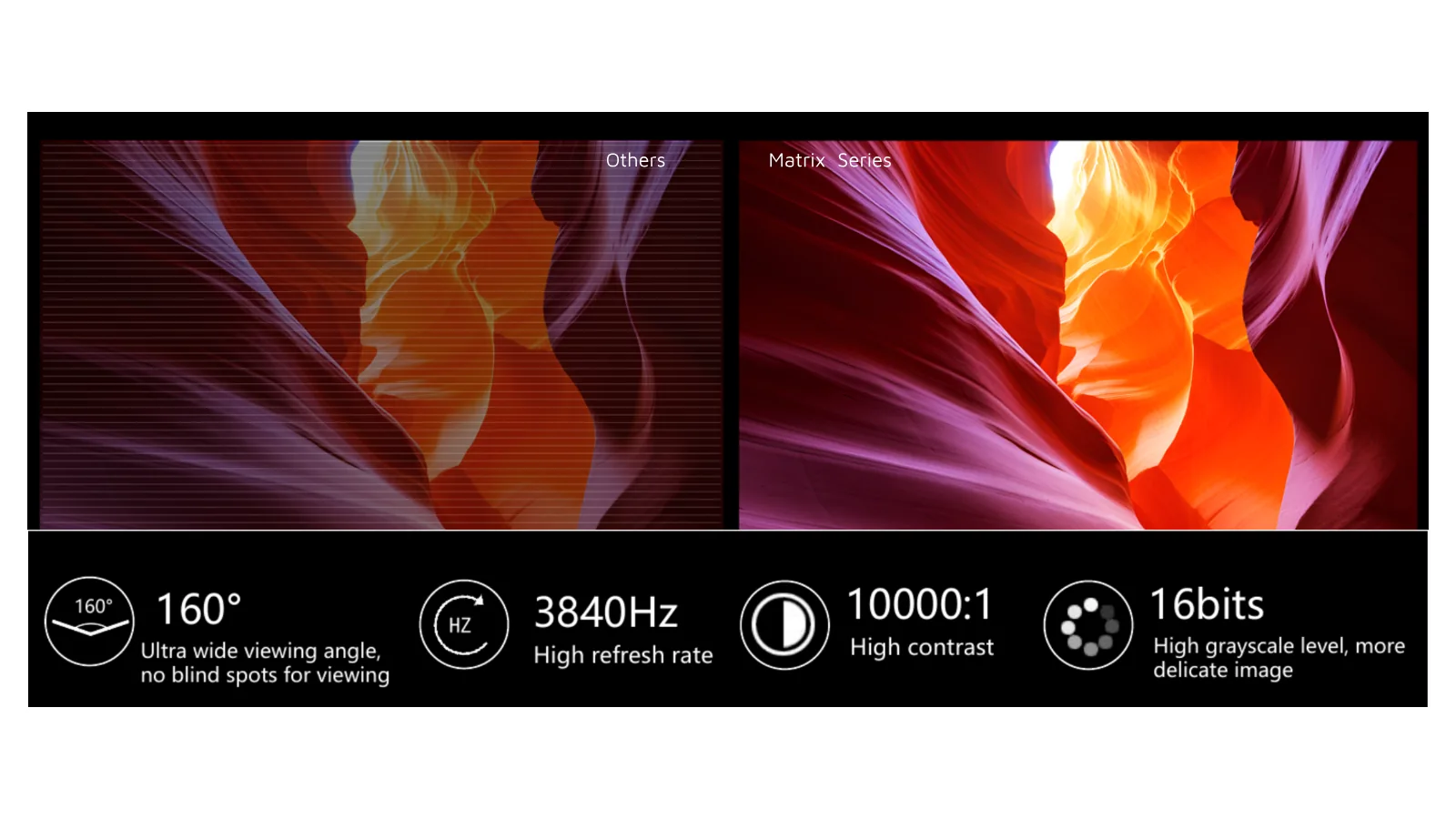

High grayscale, high refresh rate, dazzling colors.
Taking photos without scanning lines results in a more realistic and delicate display, with vibrant and saturated colors, high contrast, and an ultra-wide viewing angle.
Refresh rate
Contrast ratio
Gray scale
Viewing angle
Wireless Connection & Flexible Splicing
Engineered for speed, creativity, and reliability -- from magnetic wireless modules to multi-directional cabinet splicing.

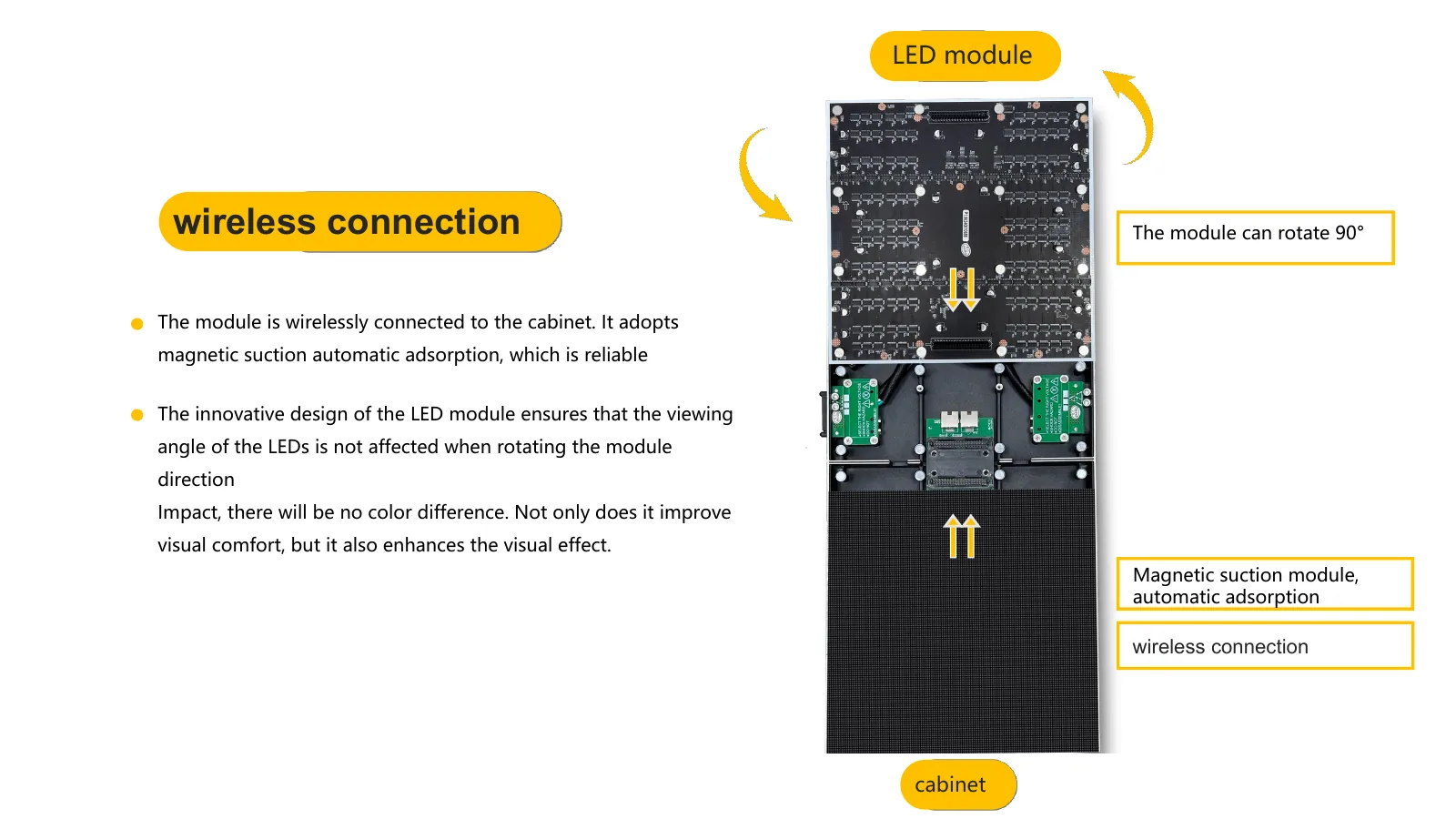

Magnetic suction with wireless module connection
The module connects wirelessly to the cabinet and adopts magnetic suction automatic adsorption. The module can rotate 90 degrees while maintaining LED viewing angle consistency, helping avoid color difference.
- Integrated power signal quick-plug interface reduces internal wiring work.
- No loose screw design helps make installation faster.
- Positioning columns, hook locks, reinforcement ribs, and anti-collision details improve flatness and customer experience.

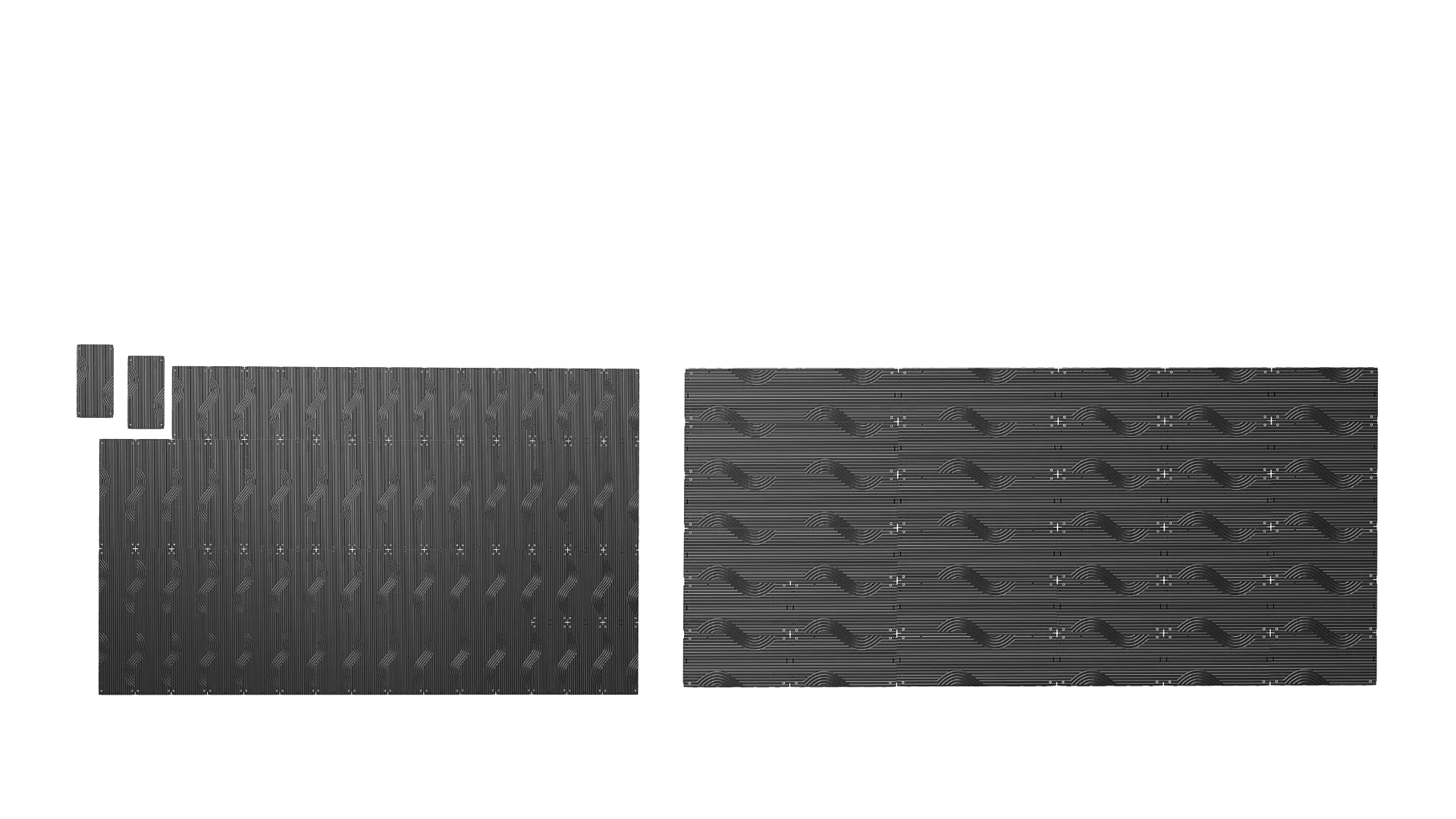

Free Splicing for Horizontal, Vertical, Right-Angle & Column Layouts
Flexible Splicing System
Cabinets can be flexibly spliced horizontally and vertically, providing endless possibilities for creative ideas and diverse application scenarios.
Multi-Directional Splicing
Horizontal and vertical flexibility with multiple cabinet options for unlimited creative configurations.
Seamless Integration
Right-angle and column support enables smooth transitions and creative architectural integration.
Rapid Deployment
Quick-install cabinet design reduces setup time by up to 60%, perfect for rental companies and event organizers.

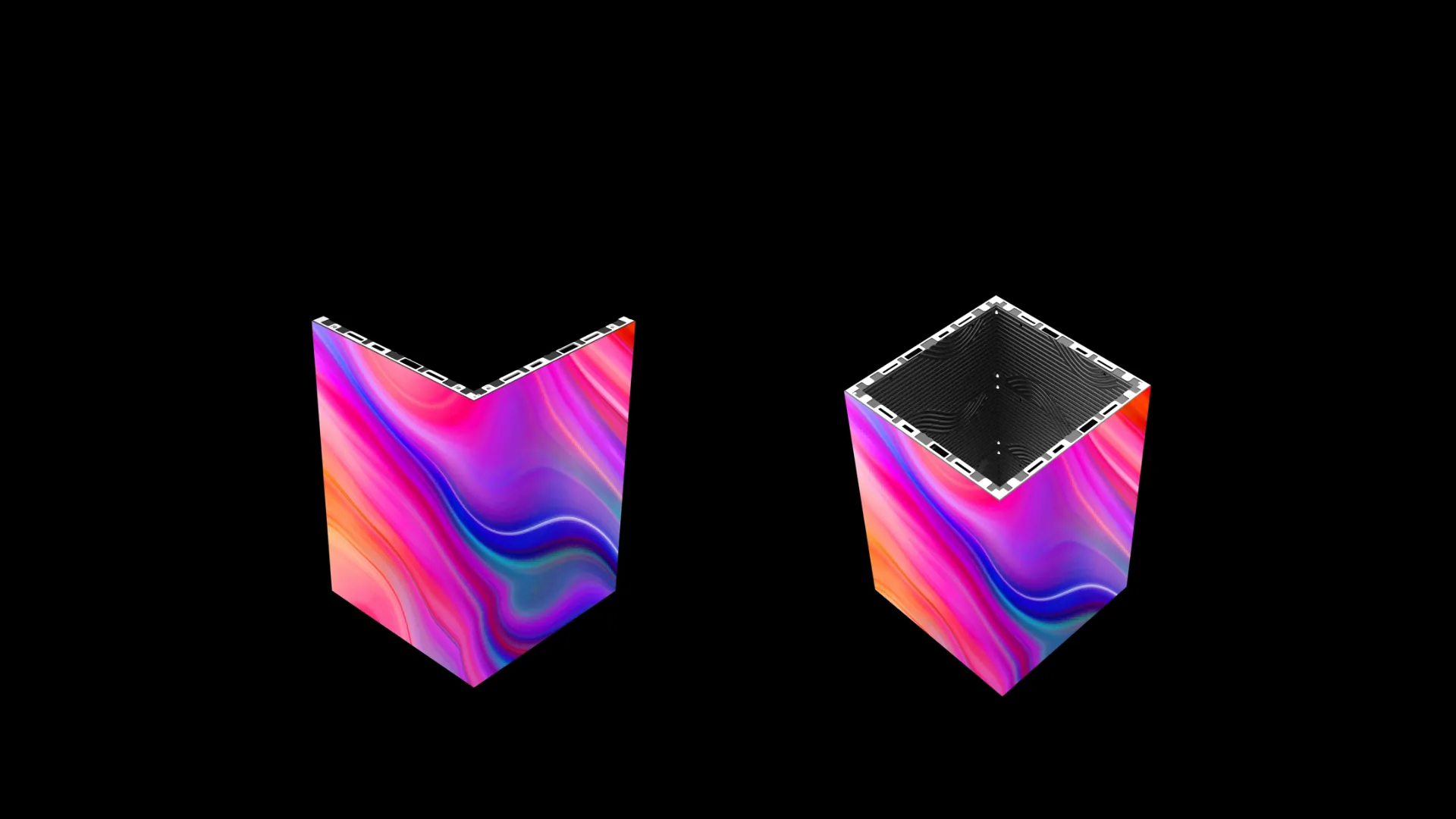

Creative Splicing, Infinite Imagination
Supports shapes such as right angles and columns to meet various creative splicing needs, enabling seamless integration with any architectural environment.

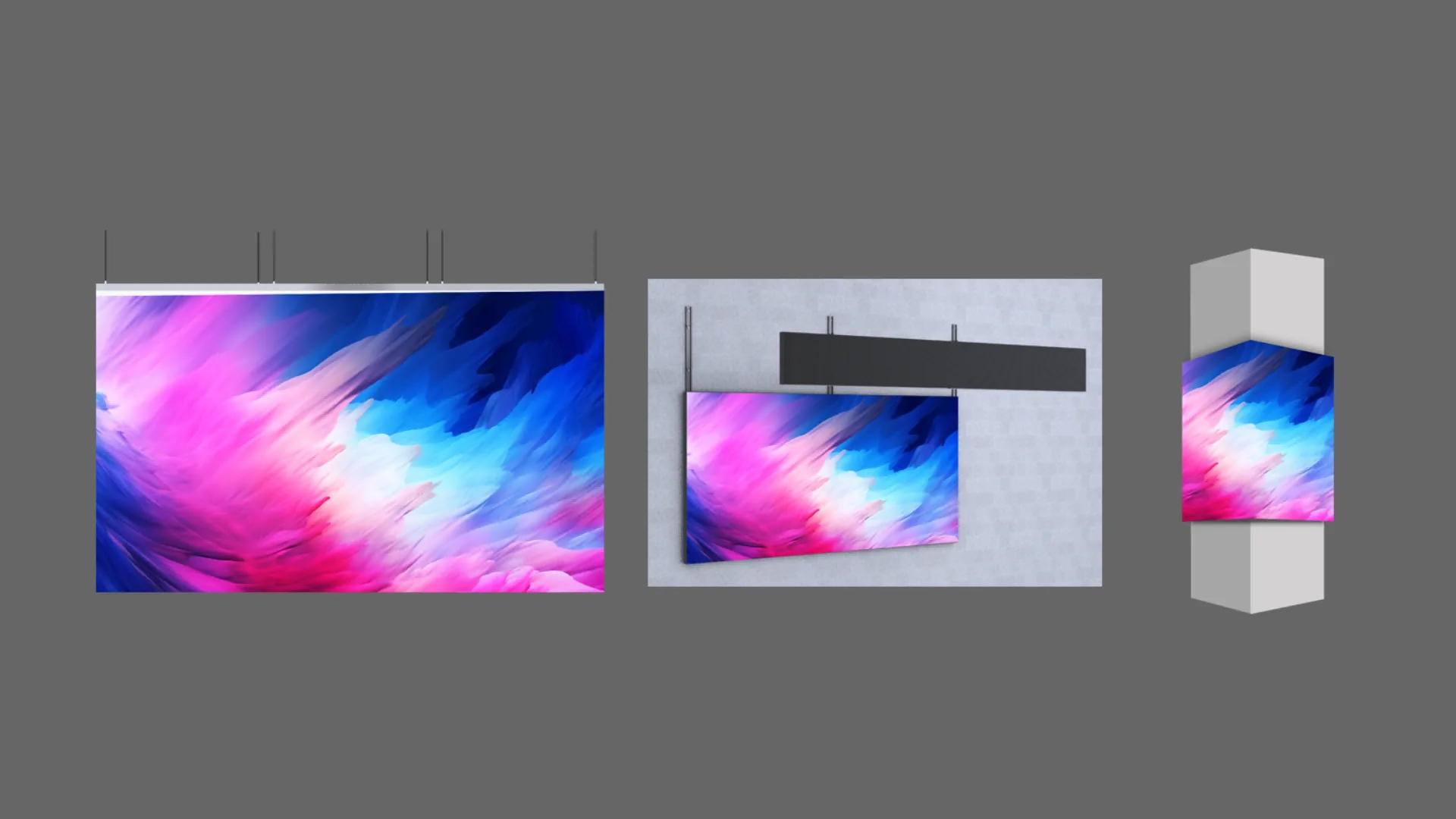

Installation Methods
Hanging
Suspended rigging for stages
Wall Mounted
Secure 90° fixed installation
Column
Mounted on structural pillars
Hanging, wall-mounted, and 90 degree column installation.
Matrix Series supports multiple installation methods, making it suitable for more fixed indoor display scenarios and creative architectural display surfaces.
1000x500mm Matrix Series specification matrix.
The table follows the supplied catalog, covering pixel pitch, brightness, module resolution, cabinet material, front maintenance, gray scale, refresh rate, power consumption, and IP rating.
Specification Table
Unified Matrix Series parameters from the supplied catalog.
| Parameter | P1.25 | P1.5625 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|---|---|---|
| LED configuration | |||||||
| LED lamp | SMD1010(GOB) | SMD1212(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Pixel resolution (dot/sqm) | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 200x200 | 160x160 | 128x128 | 100x100 | 96x96 | 84x84 | 64x64 |
| Drive mode | 1/50 scan | 1/40 scan | 1/32 scan | 1/25 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Cabinet and module platform | |||||||
| Module size | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| LED panel size | 1000x500x33mm | 1000x500x33mm | 1000x500x33mm | 1000x500x33mm | 1000x500x33mm | 1000x500x33mm | 1000x500x33mm |
| LED panel resolution | 800x400 dots | 800x400 dots | 800x400 dots | 800x400 dots | 800x400 dots | 800x400 dots | 800x400 dots |
| Maintenance method | Front | Front | Front | Front | Front | Front | Front |
| Cabinet material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Display performance | |||||||
| Brightness | 600 nits | 600 nits | 800 nits | 800 nits | 800 nits | 800 nits | 800 nits |
| Color temperature | 3200-9300K adjustable | 3200-9300K adjustable | 3200-9300K adjustable | 3200-9300K adjustable | 3200-9300K adjustable | 3200-9300K adjustable | 3200-9300K adjustable |
| Viewing angle | 160 degrees / 160 degrees | 160 degrees / 160 degrees | 160 degrees / 160 degrees | 160 degrees / 160 degrees | 160 degrees / 160 degrees | 160 degrees / 160 degrees | 160 degrees / 160 degrees |
| Brightness/chromaticity uniformity | >=97% | >=97% | >=97% | >=97% | >=97% | >=97% | >=97% |
| Contrast ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Gray scale | 14/16 bit | 14/16 bit | 14/16 bit | 14/16 bit | 14/16 bit | 14/16 bit | 14/16 bit |
| Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Frame frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power and protection | |||||||
| Power consumption | 350W/sqm | 350W/sqm | 350W/sqm | 350W/sqm | 350W/sqm | 350W/sqm | 350W/sqm |
| Average consumption | 100-200W/sqm | 100-200W/sqm | 100-200W/sqm | 100-200W/sqm | 100-200W/sqm | 100-200W/sqm | 100-200W/sqm |
| Waterproof rate | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
What buyers usually confirm before a Matrix LED quote
Matrix indoor LED projects become easier to scope when the buyer already knows viewing distance, environment type, installation method, and how the display will be operated day to day.
Application environment
Retail, showroom, conference, lobby, and branded interior spaces each place different demands on brightness, cabinet structure, and service access.
Viewing distance and image goals
Audience distance, screen size, and the kind of content shown should be aligned early so the recommendation balances clarity and project budget.
Installation and maintenance path
Wall mounting, front service, recessed structure, and equipment access all affect the final product selection and the realism of the quote.
Control and content workflow
A stronger Matrix proposal usually includes signal sources, media update method, operating hours, and whether the screen serves branding, data display, or presentation use.
Matrix indoor fixed LED display is quoted by screen area. The final price depends on pixel pitch, brightness level, cabinet material and order quantity. Send your screen size and viewing distance and we will return an itemised quotation. Matrix panels are assembled and aged in our own factory — learn more about the LED display manufacturers behind them.
